Photoworks Gallery

"Alternative Visions"
at Glen Echo Park in MD
April 13 - May 7
Opening Reception April 22 from 5 - 7:30 pm
Artists/Gallery Talk from 6 - 6:30 pm


If you are in the DC area be sure to stop by to see the show.
click here for invitation
You've had the chance to preview some of these images on the web,
but there is much more to see in person.
The internet cannot represent all of the subtle work in each piece.
They need to be seen in person to be fully appreciated.

"Camp 118.6"


"Havasu 2"
(first public showing of this piece) http://b-ccc.org/Articles/ReadArticle.asp?ID=425

new night time gravures

Image captured in September 2011.
Moon setting over Lake Webb in Maine.
This print uses Graphic Chemical ink: blue-black and thalo red mixed, on Rives BFK white paper.





This is from a negative I made in high school, (yes, we had a darkroom in high school) using my parent's Canon FTb.
I can't remember if I had my brother hold the shutter open with me working the sparkler or the other way around.
This print uses Graphic Chemical ink: blue-black and deep forest green, on Rives BFK white paper.

I like taking pictures at night.

http://artandwater.blogspot.com/2011/11/big-deal.html

http://artandwater.blogspot.com/2010/06/photopolymer-graveur-curves-preview-in.html

6 years

which, on the surface, seems like a silly random number, but I am amazed that an internet platform has remained good enough for 6 years to continue being an outlet for my work process while making me new connections with other actively engaged artists across the country (and around the world, albeit to a lesser degree). I hope that his informal blog will continue to be enjoyed by the people who read it, and give me a place to keep revealing my process.

New York Show & Sale of 19th - 21st Century Photographic Images

Stop by and see my award-winning photogravure and some other VERY nice work photographs from contemporary artists as well as some antique photos.

Saturday, March 31, 2012

at The Lighthouse
111 East 59th Street
New York, NY 10022

http://www.usphotoshows.com/shows_nyc.html

Rangefinder Magazine 1st Place Alt. Process

& People's Choice Award



March 2012 Fine Art issue
page 100
Magazine subscribers are receiving their copies this week, and it will show up in photography stores, news stands and Barnes & Noble some time next week.



I was pleasantly surprised when I opened this issue. I know that my gravure won something, and would be published (they asked me for a full res image and more information back in February). But, I thought it would just be a blurb with a small image from winning the viewer's choice award. I was blown away when I opened the magazine and discovered that the photogravure titled "Havasu" was chosen by the juror for first place in the Alternative Photographic Process category. (3rd place was also a photogravure.)

The cover price for Rangefinder Magazine is $5 (much less than many good photo magazines these days). They claim a circulation of over 60,000!!! While I would love all of my friends and colleages to pick up a copy to see my print published, there is so much beautiful work, by many good artists, in this month's issue that it's worth the $5 to enjoy it all.

http://digitalmag.rangefinderonline.com/rangefinder/201203?pg=100#pg100

http://www.rangefinderalternative.com/gallery/gallery_winners2012.shtml

Painter's Points

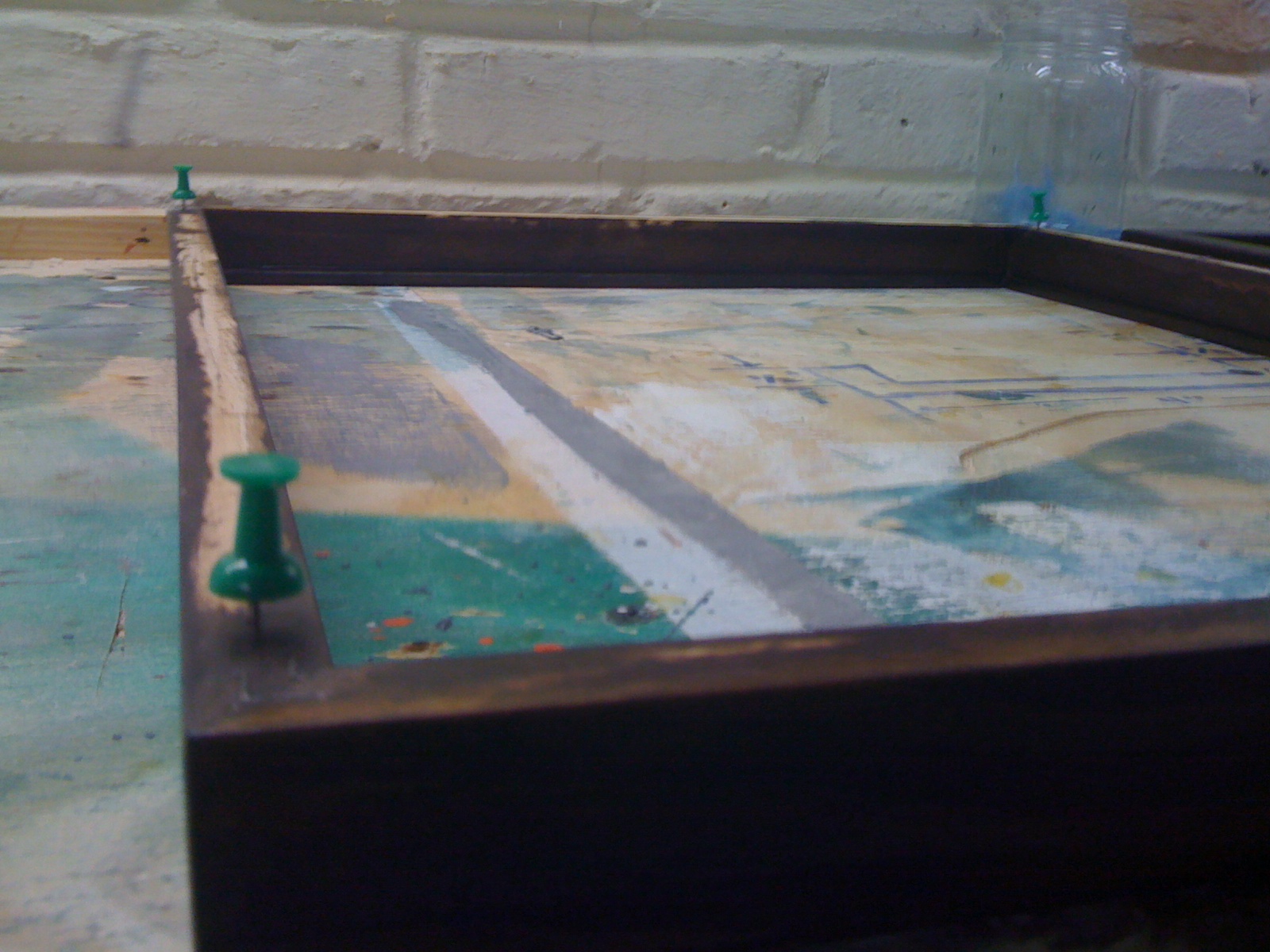

Pushpins work better than any of the plastic painter's points from the hardware store (and the pushpins don't slip)




This is not some revolutionary thing, but it seems like every time someone sees me doing thing when I'm making picture frames i hear, "oh, why didn't I think of that?" I used to have all sorts of strips of wood cut to keep the frames off the table top (to prevent stain and finish that drips from the frames from making them stick to the table). The pushpin thing came to me when I was not working in my normal shop, therefore did not have anything to keep the frames off of the table top. I was ready to go to the hardware store to buy something that I normally make when I saw a few pushpin and thought, "why didn't I think of that sooner?"

Triptych (part 1)

I don't have any idea whether or not this will work, but here's the thought:


I'll make a triptych from the Grand Canyon images by contact printing on one piece of paper. The challenge is that I want to use a different process for each of the three images. Starting with the center image seemed the most logical.
I wanted to not only have a bit of split toning with this cyanotype, but I also wanted the top third to have much more red than the bottom. I remember the river-left wall at Unkar having a deep burgundy quality, with the water reflecting the sky, the wall, as well as having a slight muddy quality to it.


I used a very mild solution to bleach the original cyanotype slowly (I heard that this helps preserve some of the highlights). Instead of standing over the basin, with my hand in the air, holding the print, I taped it to the green splash board. Once the river-left wall was almost totally bleached, I dropped the print in just enough to bleach the middle for a while. Before moving the print to the wash basin I dunked the whole thing so the toning process would bring a little warmth to the entire picture.


A similar process was employed during toning, bringing most of the deep red tone to the top third of the image.






The images will be about 1 inch apart. I've left plenty of paper on the sides to allow for easy handling while printing.


It turned out looking good. The actual image is more subtle, but this is a pretty good idea of how it looks (considering how iPhones auto exposure is strange in fluorescent light)

Digital Negatives (adjustment curves)

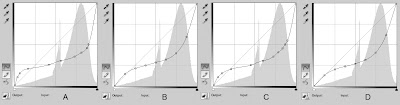

These are the four adjustment curves I made for cyanotype printing. I like "D" the best because it is closest to the original tonal range of my home-made 21 step wedge. It could use a little bit of tweaking, but I can use the information from the other three to adjust the curve to my liking. I can do this because I recorded everything, so have the data needed to make the adjustments.

Click on the images to enlarge them.

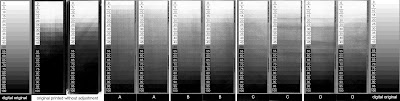

This composite image below shows the original digital 21 step wedge on the ends, and all of the pairs that I made using various adjustment curves. (this image converted to grayscale for comparison to the step wedge; it also has the levels adjusted to get rid of the head/foot in the histogram since the cyan color does not have a great Dmax. It's relative)

Here is the same composite in color.
Original digital image on the ends.
First pair was made with a transparency that did not have any adjustment curve. I simply took the image and hit "control - i" to inverse the image and create a negative, then printed it out on an Epson 3800. Using the transparency/negative to make the cyanotype prints revealed how far off the cyanotype process can be.

After scanning the cyanotype prints made with the non-adjusted transparency, I recorded the difference between the Input (what the gray density should be) and the Output (what the gray density really is in the process). I reversed the Input/Output numbers to make a compensation curve.
Curve A was made with the information from the original print on the left.
Curve B was made by using Curve A and smoothing it out a bit by clicking the pencil icon then hitting the S shaped icon below it two or three times.
Curve C was made with the information from the original print on the right.
Curve D was made by using Curve C and smoothing it out a bit by clicking the pencil icon then hitting the S shaped icon below it two or three times.

Adjustment curve D applied to this image.
10 minute exposure. Standard water development.

Converted to grayscale mode to see the real tonal range.
(no other adjustment)

This is the original digital image.

Even the darkest prussian blue possible in a cyanotype is not going to have the density of other processes, I think that this is about as good as I can get this process. Since blue reads a little lighter, and is difficult for the eye to see, I am going to make a few prints with longer exposure times. Having 90%, or even 85% drop out all the way to 100% black (blue in this case) would not hurt the image, and would make the tonal scale in the middle drop down to a slightly darker range that will create a more convincing image.


A very brief summary of the entire process:

1. Your workflow must be consistent. If it is not, then address that first.

2. Make a stepwedge (or gray chart) in Photoshop. Flatten the image. Invert it so it is a negative. Print it on a transparency. Use the same printer, print settings, and transparency brand/model every time. If you change one then you have changed your workflow and must start again.

3. Use that transparency/negative to print a cyanotype (or whatever process you are using).

4. Scan the resulting cyanotype with ALL color adjustments off.

5. Use a "Levels" layer to get rid of the "head" and "foot" of the histogram so you are only dealing with the information that exists and not theoretical densities in the digital world.

6. Use the "info" palette to record the difference between Input and Output. Input is what your chart says the number should be. Output is what it is reading in the scan.

7. Reverse the Input & Output numbers to build an adjustment curve.

8. Apply the adjustment curve to your original image. Flatten the image. Inverse the image to make a negative. Print on transparency. Use transparency/negative to make another cyanotype. The result should be a much better tonal range that looks closer to the original image.

A blog is not the right forum for explaining the entire process. There are too many variables. I have almost two years of off and on research into making digital negatives. I will list some of the best resources below. There are others, but the information is scattered (often in incomplete blogs like this one), and wading through some of the mythology can be a real challenge.
The links below will bring you to systems that use solid techniques based much experience. While each persons' system seems different, the core principles are the same.

http://www.digital-negatives.com/
The book and website are probably the best overview of all the concepts needed, and the book has a great set of instructions for the Quadtone RIP system that makes alot of sense.

http://www.inkjetnegative.com/images/RNP/rnp.htm
Is an excellent introduction to how different colors block UV light differently and has a link to an exceptionally useful script called ChartThrob.

http://www.danburkholder.com/Pages/main_pages/book_info_main_page1.htm
Dan's book is older, but the fact that it is still in use is a testament to the accuracy of the information and how straight forward the writing is.

http://www.precisiondigitalnegatives.com/
Mark Nelson has an exceptionally involved system that takes some time to get used to, but it works very well for Platinum printing. In my opinion, it is more involved that you need for processes that have less tonal range than Platinum/Palladium. I have seen some beautiful Platinum/Palladium prints made with this system, so it's worth a look.

http://www.alternativephotography.com/wp/
Lots of information can be found at the Alternative Photography community. They also have a Facebook group with many helpful people.

http://www.apug.org/forums/home.php
The Analog Photography Users Group is another community that has some experienced folks around.

http://www.alternativephotography.com/wp/negatives/digital-negatives-color-ratio
Clay Harmon's color ratio method.

http://glsmyth.com/MiscArticles/Creating_The_Digital_Negative.pdf
Another nice explanation of making digital negatives

http://www.siderotype.com/preview/dig7preview.pdf
Dr. Mike Ware has a wonderfully different approach that relies on moving the center point on the Levels slider, effectively changing the gamma, which is sometimes simpler while simultaneously maintaining great control over the tonal range of your digital negative (without the the need for the intense experimentation/documentation of many of the methods mentioned above)
