better look at the green ones

a better look

there are about 10 of these in the edition



only one of these
the rest (which are at this state right now) will get another plate/color on top of the existing image
so I guess, technically, this is a monoprint

Variety in three Editions

since this is pretty new and experimental (at least to me) I've been starting small editions from one plate then having to move on to other things, leaving the paper to rebound. Therefore, when resoaked, it stretches differently and makes registration of the next plate next to impossible.
I did a run of about 12, matching the same sized second plate as best as possible. (image on right)
Next, I cut down that second plate, changed the ink color and ran an edition of 10. (image in center)


I liked the play with overlap and small shift in scale, so decided to cut the plate on the next run with a bigger edition of 20. (image on left)
A note about this last image... the line drawing plate was the one that was cut down and printed second; the opposite of the other two images. The larger "background" color does recede because of the design, but the scale of the two plates makes it appear to advance a bit. I enjoy the slight confusion between scale and overlap.

(working paper size is 11" x 15")

There is one more plate that will get involved with this series.
I think I may leave one of the editions as it is now, but the other two will get at least one more color.



and just a fun photo showing plates in post exposure to make sure they are fully cured...

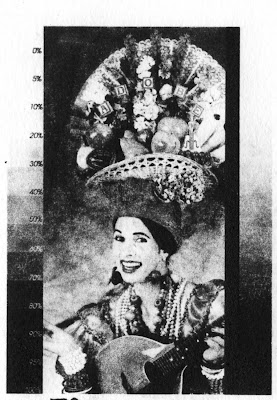

Photopolymer Aquatint Grayscale test prints

Wanting to see the difference between thin plates (from Takach Press the KM Photopolymer plate is .017" thick) and medium thickness plates (from Boxcar Press the KM 73 Photopolymer plate is .030" thick ), thinking that the thicker plates might have a more forgiving and fuller grayscale range.
Also wanted to see how much darker a shorter exposure would be.
Here are all the images in order of printing. (number and info is below each image)


image #3 from KM photopolymer plate from Takach Press
10' stocastic screen aquatint exposure and 10' image exposure



image #5 from KM photopolymer plate from Takach Press
10' stocastic screen aquatint exposure and 8' image exposure



image #7 from KM photopolymer plate from Takach Press
10' stocastic screen aquatint exposure and 6' image exposure



image #9 from KM73 photopolymer plate from Boxcar Press
10' stocastic screen aquatint exposure and 10' image exposure



image #11 from KM73 photopolymer plate from Boxcar Press
10' stocastic screen aquatint exposure and 8' image exposure




image #13 from KM73 photopolymer plate from Boxcar Press
10' stocastic screen aquatint exposure and 6' image exposure




image #15 from KM73 photopolymer plate from Boxcar Press
10' stocastic screen aquatint exposure and 5' image exposure

plate decisions and editioning

photo (polymer) graveur
digital printout of the composite photo on top
and two choices (two different plates) to help see how it actually prints


Aquatint (polymer)
These 24 prints are the first pass / first color of an edition.
The edition will most likely be 20 or 21, keeping in mind that it will take two or three experiments to get the second color correct.
